CU4500 Basic conveyor - 1x240V - Classic
Part no. 30006
Baron conveyors are hard-wearing and can be used for all types of materials from demolition debris to soil and wet mortar.
The closed side profile provides an extremely high load capacity while offering a maximum degree of safety.

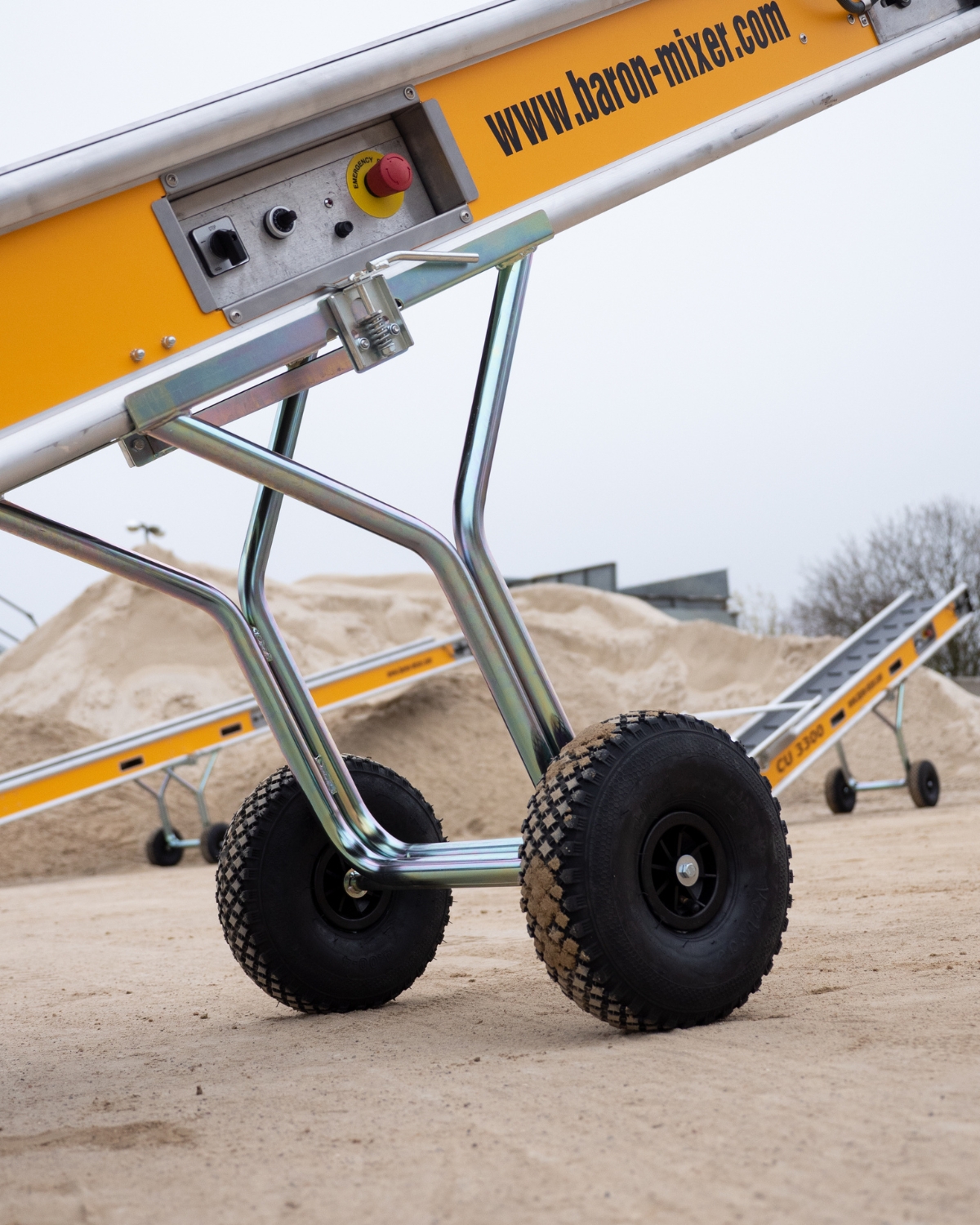

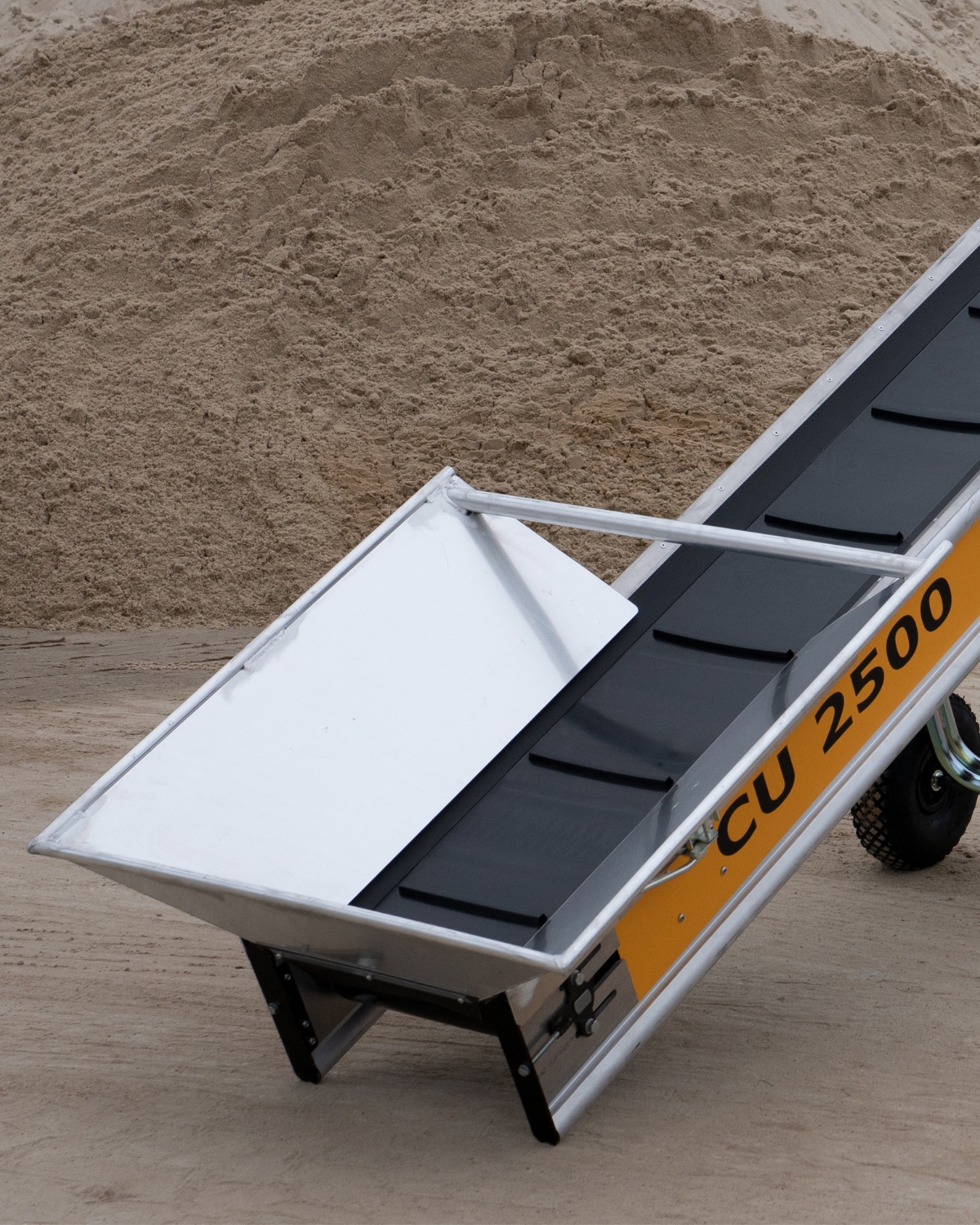

The conveyor is shown with the feeding box and undercarriage, which must be bought separately.
Remember to order a cable as well, when you order a conveyor (look under accessories):
- Cable for series connection: CU/CCU connection cable 7 m - part No. 30053
Please note that the cable with part No. 50104 is only compatible with a Danish plug.
The belts
on the conveyors can also be made with cleats of different heights or shapes. Contact
us to hear your options.
Specifications
| Length | 189 in |
|---|---|
| Motor | 550 watt |
| Width | 17 in |
| Engine | 3x240V 0.55kW |
| Height | 9 in |
| Weight | 191 lbs |
| Current | 240 |
| Belt speed (in/sec) | 20-80 |
| Belt Width | 13 in |
| Belt Length | 177 in |
| Max. pullpower | 440 lbs |
| workindependent | Yes |
| Standard carrier on belt | 4.7200 |
| Variable belt speed | 7.87 to 31.49in/s |
